Water is the most critical input in any broiler operation. Inconsistent water pressure, leaking nipples, or contaminated drinking lines directly suppress feed intake, slow growth rates, and increase flock mortality — all of which cut into your margin every single cycle. The Huamin Agri Trading Broiler Nipple Drinking System is engineered to deliver clean, correctly pressurized water to every bird in your shed from day one of placement all the way through to removal, with minimal maintenance and zero compromise on hygiene.

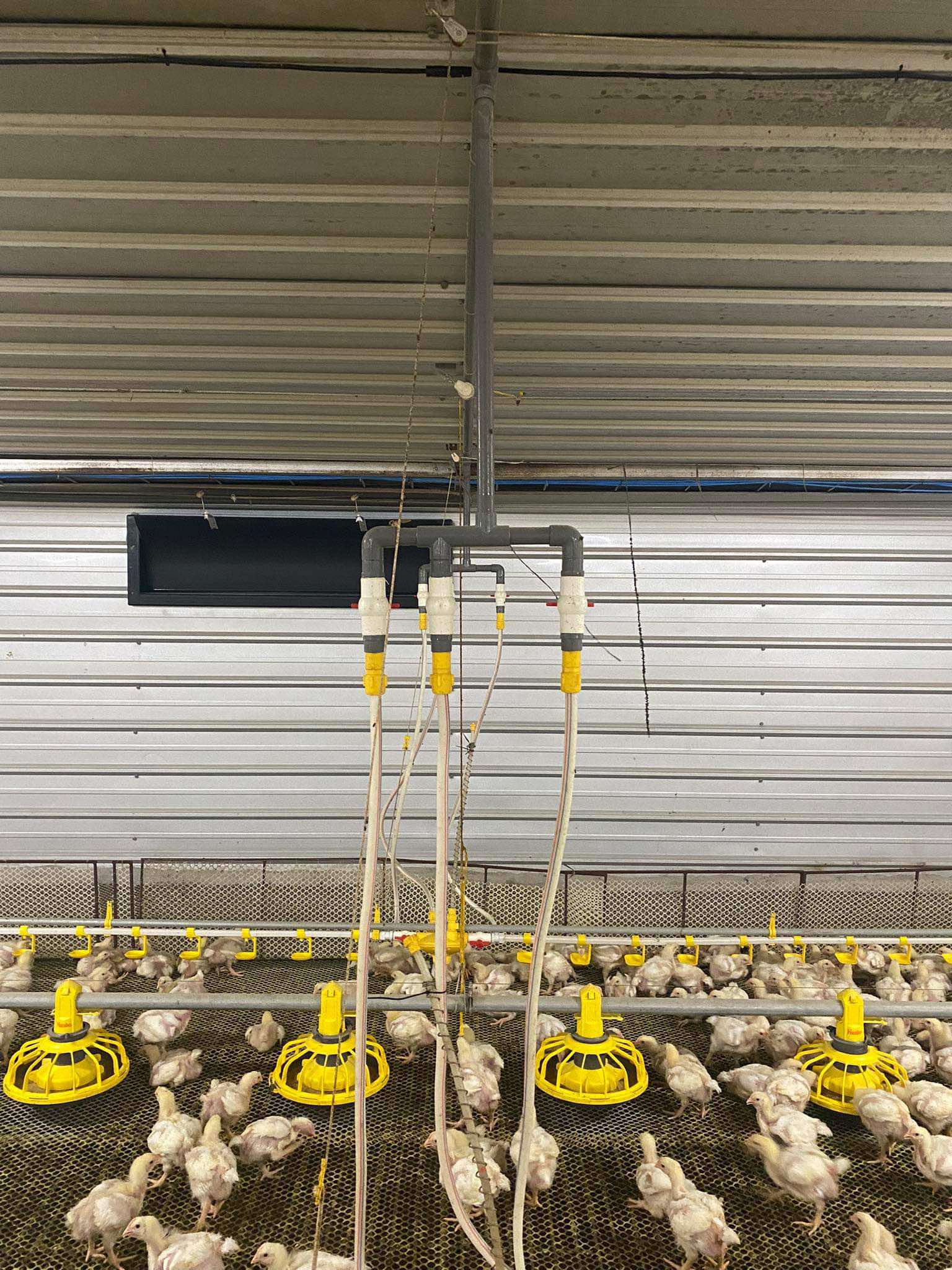

The system runs 7 drinking lines per shed, each extending 135 meters, for a total of 4,725 nipples per shed. At a ratio of 10.3 birds per nipple, every bird has reliable and timely access to water without crowding or competition — a critical factor in maintaining flock uniformity and preventing water-related stress, especially during peak Philippine heat periods. Each square drinking pipe component is 3 meters long with 15 nipples pre-installed, allowing for consistent spacing across the full length of every line.
Unlike fixed-direction nipples that force birds into unnatural postures to access water, the 360° rotating nipple design allows birds to drink from any angle, in any direction. This encourages natural drinking behavior, improves water intake consistency across the flock, and reduces neck strain injuries — particularly important during the early brooding period when day-old chicks are establishing feeding and drinking patterns that affect their entire growth cycle.
Leaking nipples are one of the most damaging and overlooked problems in broiler management. Wet litter from dripping nipples creates the ideal environment for bacterial growth, coccidiosis, and footpad lesions — all of which increase medication costs and reduce slaughter weight. The Huamin nipple drinking system is tested and verified for zero leakage over a continuous 24-hour period, giving farm operators confidence that their litter management and flock health are not being silently undermined by faulty drinkers.

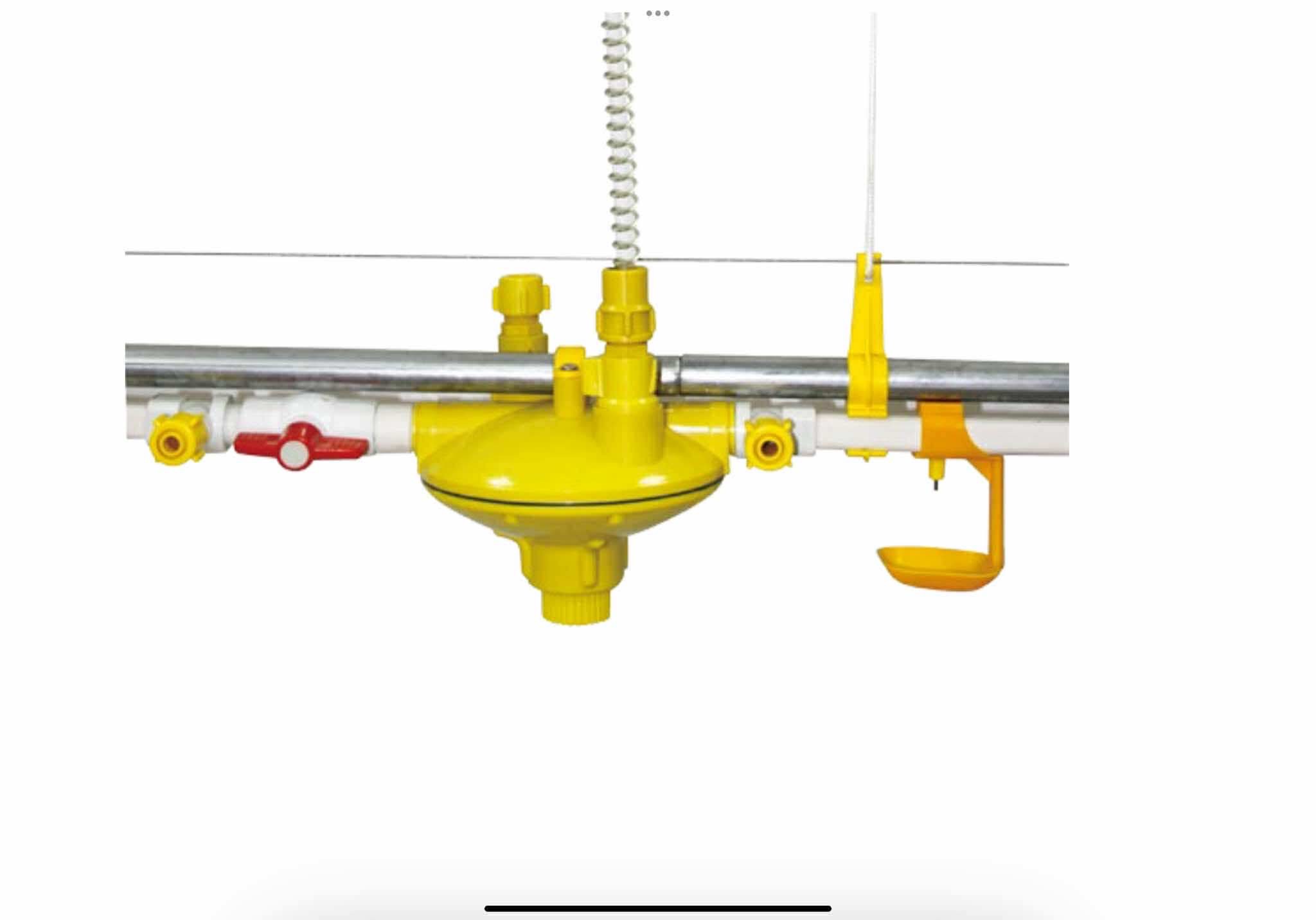

The system uses a high-flow, 2-way water pressure regulator operating within a 0–4 kPa range, maintaining consistent water pressure across the full length of every drinking line. Pressure drop is one of the most common failures in long drinking lines — birds at the far end of the shed receive inadequate water while birds near the inlet are overpressured, causing spillage and wet litter. The 2-way regulator design eliminates this imbalance, ensuring uniform water delivery from the first nipple to the last.
The drinking line pipe is constructed from light-resistant PVC specifically formulated to block sunlight penetration. In tropical farming conditions like those across the Philippines, standard clear or translucent pipes allow algae and moss to grow inside the line — contaminating drinking water, clogging nipples, and requiring frequent chemical flushing. The light-blocking PVC pipe eliminates this problem at the source, reducing cleaning frequency and maintaining water quality throughout the flock cycle.
The system includes water valves positioned for easy full-line flushing, allowing farm workers to purge the entire drinking line quickly between cycles. Combined with the light-resistant pipe and zero-leak nipple design, this makes end-of-cycle biosecurity cleaning straightforward — an important consideration for Philippine farms running multiple cycles per year where thorough cleanouts directly impact the health of the next placement.
Unlike some drinker systems that require component changes between the brooding and grow-out phases, the Huamin Nipple Drinking System is designed to operate from day-old chick placement through to removal without modification. This saves time, reduces equipment investment, and eliminates the risk of installation errors during critical early growth periods.
International suppliers such as Big Dutchman provide drinking systems engineered for Northern European and North American conditions — environments very different from the heat, humidity, and water quality conditions found on Philippine poultry farms. Huamin Agri Trading supplies drinking systems selected and configured specifically for tropical commercial operations, with local technical support, readily available replacement nipples and components, and a team that understands the day-to-day realities of running a broiler farm in the Philippines.
Our team will assess your shed layout, water source pressure, and stocking density to recommend the exact line configuration your farm requires.
Book a consultation with Huamin Agri Trading today and get a custom drinking system layout for your shed.
